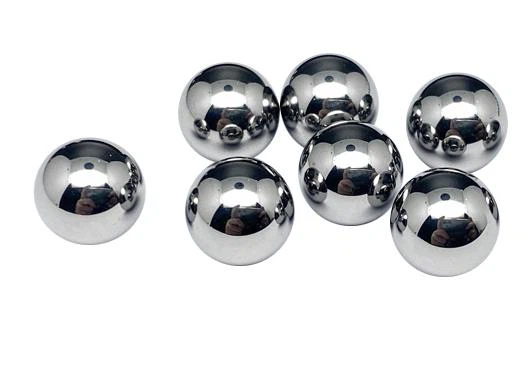

Tungsten Carbide Ball

Tungsten carbide balls, commonly known as tungsten steel balls, refer to balls or rolling balls made from tungsten carbide materials.

Send Inquiry

Description

Tungsten carbide balls, commonly known as tungsten steel balls, refer to balls or rolling balls made from tungsten carbide materials. These balls are ideally suited for harsh environments, offering excellent wear resistance, impact resistance, corrosion resistance, and shape retention.

Tungsten carbide balls are made from micron-grade powders of refractory metals such as tungsten carbide (WC) , with cobalt (Co), nickel (Ni), or molybdenum (Mo) used as binders. These powders are sintered in a vacuum furnace or hydrogen reduction furnace to form powder metallurgy products. The commonly used types of tungsten carbide include YG, YN, YT, and YW series.Common applications include ball valves, flow meters, ball bearings, linear bearings, and ball screws

Quick Details

Application:ball valves, flow meters, ball bearings, linear bearings etc.	Origin: Zigong,Sichuan,China
Brand Name: Sansheng	Model Number: Custom Made
Type: As Required	Material : WC+Co
Product Name: Tungsten Carbide Ball	Feature:excellent wear resistance, impact resistance
Grade:YG,YN,YT	Output : 1000kg/Mont

Product Classification:

Tungsten carbide balls mainly include rough balls, precision ground balls, punched balls, bearing balls, valve balls, non-magnetic balls, Monel balls, through-hole balls, metering balls, color scraper balls, and pen balls.

Common Grades

YG Series:

YG6 Tungsten Carbide Ball

YG6X Tungsten Carbide Ball

YG8 Tungsten Carbide Ball

YG13 Tungsten Carbide Ball

YG20 Tungsten Carbide Ball

The YN Series includes:

YN6 Tungsten Carbide Ball

YN9 Tungsten Carbide Ball

YN12 Tungsten Carbide Ball

YT Series:

YT5 Tungsten Carbide Ball

YT15 Tungsten Carbide Ball

Quality control

1.All raw materials are tested in terms of density, hardness and TRS before use
2.Every piece of product goes through in-process and final inspection
3.Every batch of product can be traced

4.Materials: virgin

product-943-162

FAQ

Q: How is your quality?

A: We have a very seriously control system. We guarantee the high performance of our products

Q: What is the Warranty for your products?

A: For one year from the date of purchase, If any problem on our side, we will make prompt response, and take the shipping cost and send replacement.

Q: Do you have different quality for different kind of stone?

A: Yes, according hardness of stone and stone's feature, we have different typology respectively.

Q: If we need technical support, can you offer us?

A: Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.

Q: How can we be your agent in our country?

A: Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.

Q: Do you offer free samples?

A: Normally we do not offer free samples, but we guaranty our product's quality.

Q: Is there cheap shipping cost to import to our country?

A: For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.

Q: Which Express company you send? How many days we can receive?

A: We are official partner of DHL, it will take only 3-5 days after we sent.

Q: When you can reply to me when I send you an Inquiry?

A: We promise to reply within 24 hours(not including holidays) on receipt of your inquiry
